Flint Clicky — three-quarter front view

mx switch

SKU DC-SW-FLC-10

Flint Clicky

ClickyMX · 5-pinClicky sound

70 gf click bar. Sharp and heavy.

Actuation
55gf
Click
70gf
Pre-travel
2.0mm
Travel
4.0mm
$6$0.60 per switchIn stock

Pack: 10 switches

5 packs

Which pack for my keyboard?

One switch per key. Pick your board and we select the pack that fills it:

Our keyboards

Other boards

Counts are typical for each layout; our boards list their exact number.

Quantity: 1

Arrives in 4–8 business days

US estimate: ships in 1–2 business days, then 3–6 in transit.

We ship to 25 countries — rates at checkout

$93 more for free US shipping$99

Not sure yet? The MX Switch Tester has all 13 of our MX switches — from $9.

0-01Flint Clicky

Overview

Flint is the heavy clicky: a stiffer click bar and a 70 gf peak produce a sharp, high-pitched snap that you feel as much as you hear. A 22 mm spring that finishes at 68 gf sends the key back up quickly, so fast typing stays crisp.

A smoked translucent top over a black base lets the orange stem glow warm under RGB. Like Spark, it ships dry so the click stays sharp. Choose Flint over Spark if you press hard or want more resistance before each click.

  • 70 gf click peak
  • Sharper, heavier click than Spark
  • Smoked top, orange stem
  • Strong, fast return

0-02Flint Clicky

Force curve

How hard the key pushes back at every depth of the press, drawn through its measured actuation, peak and bottom-out forces. The dashed line is the way back up.

Force curve · Flint Clicky

Flint Clicky force curve. The key starts at 42 gf, builds up to a 70 gf click at 1.6 mm and snaps through. It registers at 2.0 mm with 55 gf and bottoms out at 4.0 mm with 68 gf. On the way up the force typically runs about 4 gf lower and the click is barely felt.

Actuation
55 gf at 2.0 mm
Click
70 gf at 1.6 mm
Bottom-out
68 gf at 4.0 mm
Release
typically 4 gf lower
Drawn through the measured points in the spec table. The shape between them and the release line are typical for a click-bar switch, not a measurement of every unit.

0-03Flint Clicky

Anatomy(4)

Four parts, each in its own plastic and colour. The materials decide much of the sound.

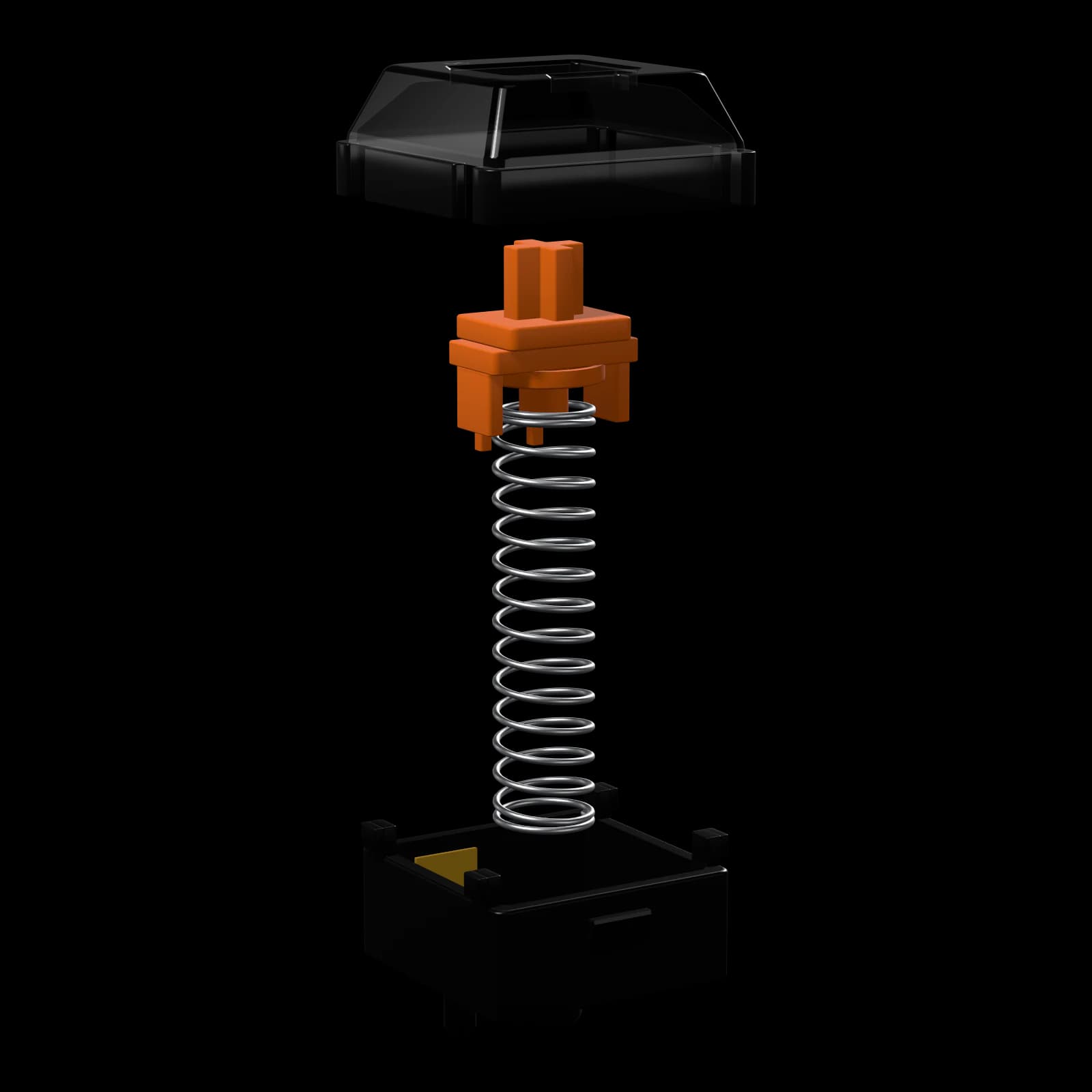

Flint Clicky — exploded view of the housings, stem and spring

  1. 0-01top housing

    PolycarbonateClear

    Rigid, with a brighter, sharper sound. Clear, so RGB lights the whole switch. Closes the switch and guides the stem; shapes the sound of the upstroke.

  2. 0-02stem

    POM

    Self-lubricating: the smoothest stroke and a soft, creamy sound. The moving part. Its cross holds the keycap; its legs snap the click bar on the way down.

  3. 0-03spring

    22 mm single-stage spring

    Sets the weight: how hard the key pushes back at the top and at the bottom of the stroke.

  4. 0-04bottom housing

    Polycarbonate

    Rigid, with a brighter, sharper sound. Holds the metal contacts and pins; shapes the sound of the bottom-out.

  • 5-pin
  • Dry — unlubed
  • 60M keystrokes

0-04Flint Clicky

Sound & feel

Clicky switch with a clicky sound profile.

Sound profile

  1. Muted
  2. Creamy
  3. Thocky
  4. Poppy
  5. Clacky
  6. Clicky

Clicky. An audible click at the actuation point — the loudest.

Clicky switches

A bump plus an audible click right before the key registers.

Feel
A snappy, well-defined bump. The click lands at the same point on every press, so you hear each keystroke go through.
Sound
Loud and high-pitched — satisfying on your own, obvious to everyone else in the room and on an open microphone.

Good for

  • Typists who love feedback
  • A board used on its own
  • Learning a lighter touch: the click tells you when you can stop

Think twice if: You share a room, stream or take calls with an open mic, or type at night.

0-05Flint Clicky

Keyboards it fits(2)

Any MX-style hot-swap keyboard takes these — no soldering. They do not work in magnetic (HE) keyboards.
Hot-swap
Sockets that let you pull and insert switches without soldering. Strata 75 and Flux TKL have MX-style hot-swap sockets; Halo 65 HE has magnetic (HE) hot-swap sockets — each takes only its own kind of switch.
3-pin vs 5-pin
5-pin switches have two extra thin plastic legs that steady them in boards without a plate. Hot-swap boards with 5-pin holes take both kinds; for a 3-pin-only board, clip the two plastic legs off with flush cutters — never the metal pins.

0-06Flint Clicky

Specs(16)

Covered by a 12-month warranty.
Type
Clicky
Mount
MX-style, hot-swap
Pins
5-pin (PCB mount)
Actuation force
55 gf
Click peak
70 gf at 1.6 mm
Bottom-out force
68 gf
Pre-travel
2.0 mm
Total travel
4.0 mm
Spring
22 mm single-stage spring
Top housing
PC, clear
Bottom housing
PC
Stem
POM
Factory lubed
No
Long pole
No
Sound
Clicky
Rated lifespan
60M keystrokes

In the box(2)

  1. Switches in a padded tray — quantity as selected
  2. Switch puller with packs of 35 and up

0-07Flint Clicky

Questions(8)

Still unsure? Write to [email protected] — we reply within one business day.

They fit any hot-swap keyboard with MX-style sockets, including our Strata 75, Flux TKL and Atelier builds. They have 5 pins, and our boards take them as they are. If your board only takes 3-pin switches, clip the two thin plastic side legs flush with a pair of flush cutters — never the metal pins. They do not work in magnetic (HE) keyboards, and a board without hot-swap sockets needs soldering to change switches.

side by side

Compare with similar(3)

The closest switches in feel that fit the same keyboards, with their force curves on one scale.

all switches

  • Flint Clicky

    this switch · 55 gf · clicky · from $6

  • Spark Clicky

    50 gf · clicky · from $5

  • Summit Tactile

    60 gf · thocky · from $7

  • Crest Tactile

    45 gf · poppy · from $6

try before you fill a board

MX Switch Tester

All 13 of our MX switches, one of each. Press them side by side and pick the one to fill your board with.

from$9[ see the tester ]
