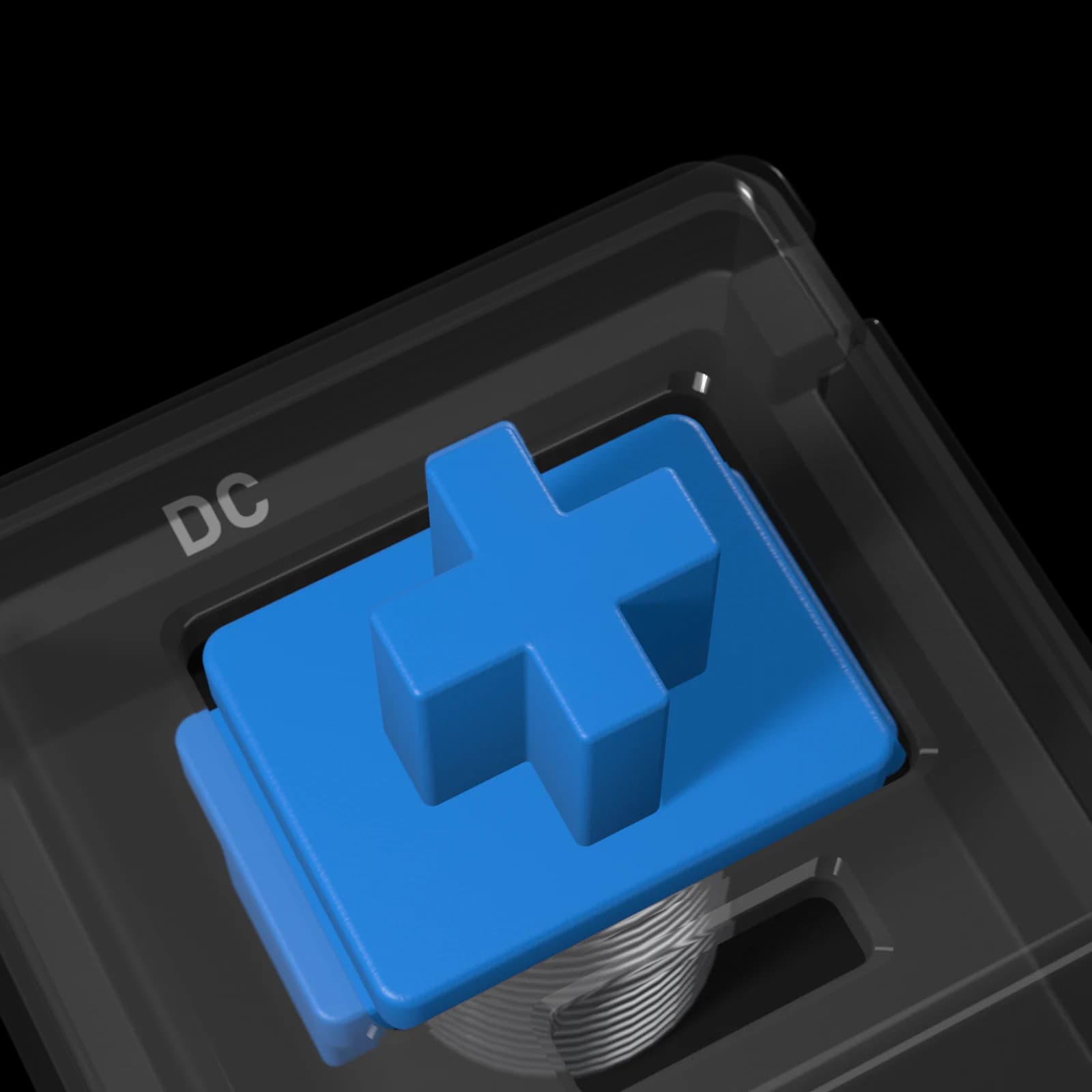

Flash HE Linear — three-quarter front view
New

magnetic switch

SKU DC-SW-FHE-10

Flash HE Linear

Magnetic (HE)HE boards onlyClacky soundFactory lubed

35 gf magnetic. Our lightest HE switch.

Actuation
35gf
Bottom-out
45gf
Adjustable
0.1–4.0mm
Travel
4.0mm
$8$0.80 per switchIn stock

Pack: 10 switches

4 packs

Which pack for my keyboard?

Magnetic switches only fit Hall-effect (HE) keyboards — not MX sockets. Pick your board:

Our keyboards

Other HE boards

Counts are typical for each layout; our boards list their exact number.

Quantity: 1

Arrives in 4–8 business days

US estimate: ships in 1–2 business days, then 3–6 in transit.

We ship to 25 countries — rates at checkout

$91 more for free US shipping$99

Not sure yet? The HE Switch Tester has all 3 of our magnetic switches — from $10.

0-01Flash HE Linear

Overview

Flash is a light 35 gf magnetic switch for players who run short actuation points and Rapid Trigger. With less spring pushing back, fingers stay relaxed through long sessions, and the small movements that Rapid Trigger reads take less effort.

A common setup is Flash on the movement keys and Magnet HE or Anchor HE everywhere else; the clear top and blue stem make the swapped keys easy to spot. A clear polycarbonate top gives it a brighter, clackier sound than our other magnetic switches.

  • 35 gf — lightest HE we sell
  • Made for short actuation + Rapid Trigger
  • Clear top, blue stem
  • Great for WASD swaps

0-02Flash HE Linear

Force curve

How hard the key pushes back at every depth of the press, drawn through its measured actuation, peak and bottom-out forces. The dashed line is the way back up.

Force curve · Flash HE Linear

Flash HE Linear force curve. The key starts at 25 gf and rises evenly, with no bump. It registers at 2.0 mm with 35 gf and bottoms out at 4.0 mm with 45 gf. On supported boards the actuation point can be set anywhere from 0.1 mm to 4.0 mm. On the way up the force typically runs about 3 gf lower.

2.0 mm · 35 gf
0.1 mm · hair trigger4.0 mm · full press
Actuation (set)
35 gf at 2.0 mm
Bottom-out
45 gf at 4.0 mm
Release
typically 3 gf lower
Drawn through the measured points in the spec table. The shape between them and the release line are typical for a linear switch, not a measurement of every unit.

0-03Flash HE Linear

Anatomy(4)

Four parts, each in its own plastic and colour. The materials decide much of the sound.
Flash HE Linear — exploded view of the housings, stem and spring

  1. 0-01top housing

    PolycarbonateClear

    Rigid, with a brighter, sharper sound. Clear, so RGB lights the whole switch. Closes the switch and guides the stem; shapes the sound of the upstroke.

  2. 0-02stem

    POM

    Self-lubricating: the smoothest stroke and a soft, creamy sound. The moving part. Its cross holds the keycap; a magnet in its base is what the board reads.

  3. 0-03spring

    20 mm single-stage spring

    Sets the weight: how hard the key pushes back at the top and at the bottom of the stroke.

  4. 0-04bottom housing

    PA12 nylon

    A stable nylon blend with a deeper, quieter sound. Sits over the board’s Hall-effect sensor — no metal contacts to wear out.

  • No pins — magnetic
  • Factory lubed
  • 200M keystrokes

0-04Flash HE Linear

Sound & feel

Magnetic (HE) switch with a clacky sound profile.

Sound profile

  1. Muted
  2. Creamy
  3. Thocky
  4. Poppy
  5. Clacky
  6. Clicky

Clacky. Bright and sharp: a higher clack as the key bottoms out.

Magnetic (HE) switches

A magnet and a sensor instead of metal contacts — the actuation point is yours to set.

Feel
Linear, with an actuation point you set from 0.1 mm to 4.0 mm and Rapid Trigger on supported boards.
Sound
Like a linear of the same plastics — the sensor itself is silent.

Good for

  • Competitive shooters
  • Counter-strafing with Rapid Trigger
  • Players who tune every key

Think twice if: Your keyboard is not a Hall-effect board — magnetic switches only work in HE keyboards, and MX switches don’t work in them.

0-05Flash HE Linear

Keyboards it fits(1)

Magnetic switches work only in Hall-effect keyboards. They do not fit MX sockets, and MX switches do not work in HE boards.
Hall-effect (HE)
Magnetic switches read by a sensor. The board sees the key position continuously, which enables adjustable actuation and Rapid Trigger.
Rapid Trigger
An HE-board feature: a key resets the moment it starts rising and actuates again the moment it goes back down, instead of at fixed points. Faster repeated taps and counter-strafes.

0-06Flash HE Linear

Specs(16)

Covered by a 12-month warranty.
Type
Magnetic (HE)
Mount
Magnetic Hall-effect (HE boards only)
Pins
None — magnetic
Actuation force
35 gf
Bottom-out force
45 gf
Pre-travel
2.0 mm
Total travel
4.0 mm
Adjustable actuation
0.1 – 4 mm on supported boards
Spring
20 mm single-stage spring
Top housing
PC, clear
Bottom housing
PA12
Stem
POM
Factory lubed
Yes
Long pole
No
Sound
Clacky
Rated lifespan
200M keystrokes

In the box(2)

  1. Switches in a padded tray — quantity as selected
  2. Switch puller with packs of 35 and up

0-07Flash HE Linear

Questions(8)

Still unsure? Write to [email protected] — we reply within one business day.

These are magnetic Hall-effect switches: they work only in keyboards built for magnetic switches, such as our Halo 65 HE. They do not fit regular MX hot-swap sockets, and MX switches do not work in HE boards. Magnetic switches also differ between brands in magnet strength and travel, so before fitting them to another brand’s HE keyboard, check that board’s list of supported switches.

side by side

Compare with similar(2)

The closest switches in feel that fit the same keyboards, with their force curves on one scale.

all switches

  • Flash HE Linear

    this switch · 35 gf · clacky · from $8

  • Magnet HE Linear

    45 gf · poppy · from $8

  • Anchor HE Linear

    55 gf · thocky · from $8

try before you fill a board

HE Switch Tester

Every magnetic switch we make, two of each. Swap them onto your most-used keys and pick the one to fill your board with.

$10[ see the tester ]
