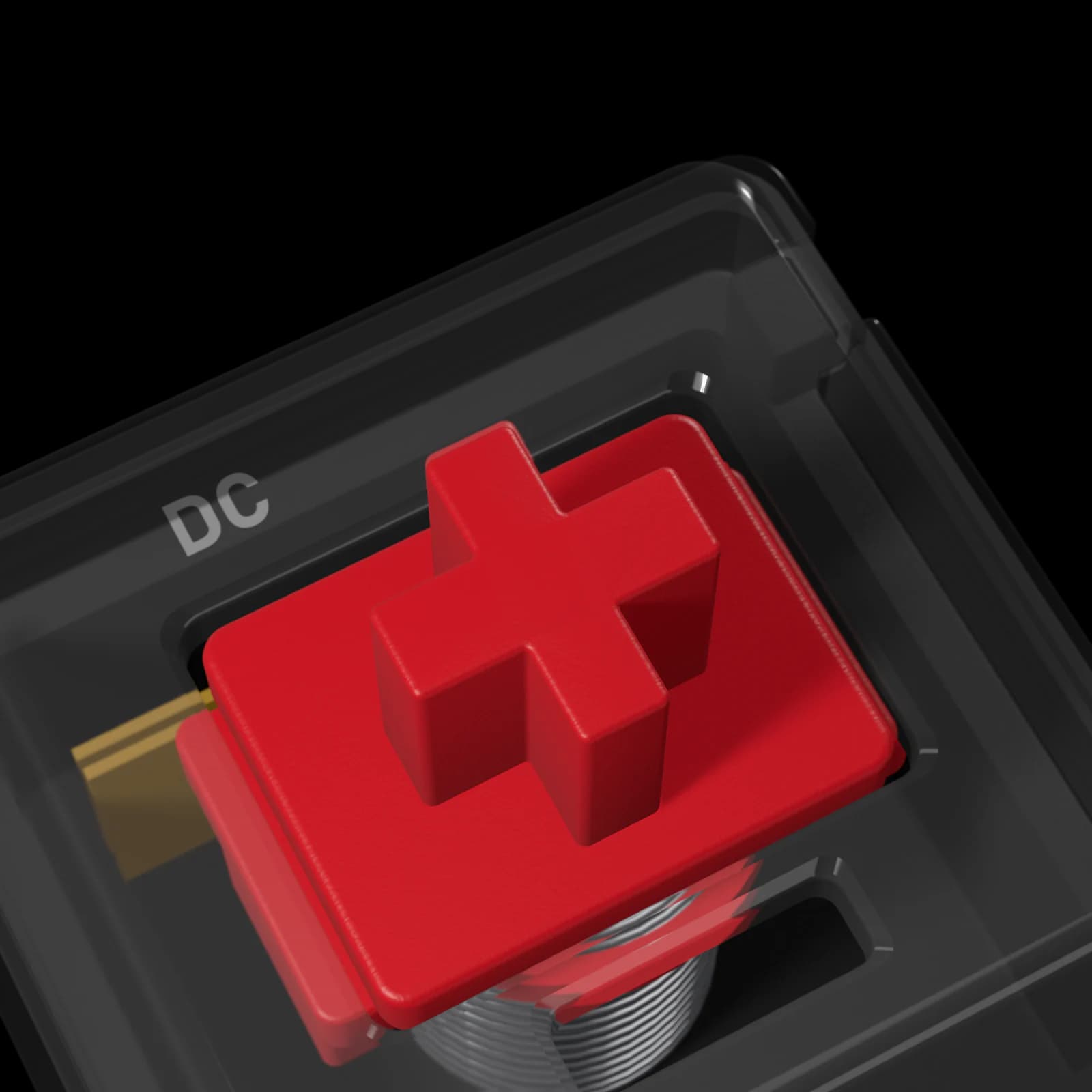

Ember Linear — three-quarter front view
Bestseller

mx switch

SKU DC-SW-EML-10

Ember Linear

LinearMX · 5-pinPoppy soundFactory lubed

45 gf linear. Light, smooth, poppy.

Actuation
45gf
Bottom-out
55gf
Pre-travel
2.0mm
Travel
4.0mm
$6$0.60 per switchIn stock

Pack: 10 switches

5 packs

Which pack for my keyboard?

One switch per key. Pick your board and we select the pack that fills it:

Our keyboards

Other boards

Counts are typical for each layout; our boards list their exact number.

Quantity: 1

Arrives in 4–8 business days

US estimate: ships in 1–2 business days, then 3–6 in transit.

We ship to 25 countries — rates at checkout

$93 more for free US shipping$99

Not sure yet? The MX Switch Tester has all 13 of our MX switches — from $9.

0-01Ember Linear

Overview

Ember is our everyday linear: 45 gf to actuate, 55 gf at the bottom and a full 4.0 mm stroke. It is the same weight as the linears in our Strata 75 and Flux TKL, so it feels familiar from the first press — light enough to stay fast through long sessions, firm enough that keys do not go down under a resting finger.

A clear polycarbonate top over a black nylon bottom gives a crisp, poppy sound: bright at the top of the press, rounded at the bottom, loud enough to be satisfying and quiet enough for a shared room. The red POM stem glides with little friction, and every switch is factory lubed with a thin, even coat — no scratch, no spring ping, nothing to do before you install it.

  • 45 gf actuation, 55 gf bottom-out
  • Poppy: clear PC top, nylon bottom
  • Factory lubed, no spring ping
  • 5-pin, fits any MX hot-swap board

0-02Ember Linear

Force curve

How hard the key pushes back at every depth of the press, drawn through its measured actuation, peak and bottom-out forces. The dashed line is the way back up.

Force curve · Ember Linear

Ember Linear force curve. The key starts at 35 gf and rises evenly, with no bump. It registers at 2.0 mm with 45 gf and bottoms out at 4.0 mm with 55 gf. On the way up the force typically runs about 4 gf lower.

Actuation
45 gf at 2.0 mm
Bottom-out
55 gf at 4.0 mm
Release
typically 4 gf lower
Drawn through the measured points in the spec table. The shape between them and the release line are typical for a linear switch, not a measurement of every unit.

0-03Ember Linear

Anatomy(4)

Four parts, each in its own plastic and colour. The materials decide much of the sound.
Ember Linear — exploded view of the housings, stem and spring

  1. 0-01top housing

    PolycarbonateClear

    Rigid, with a brighter, sharper sound. Clear, so RGB lights the whole switch. Closes the switch and guides the stem; shapes the sound of the upstroke.

  2. 0-02stem

    POM

    Self-lubricating: the smoothest stroke and a soft, creamy sound. The moving part. Its cross holds the keycap; with no bump legs, nothing interrupts the stroke.

  3. 0-03spring

    22 mm single-stage spring

    Sets the weight: how hard the key pushes back at the top and at the bottom of the stroke.

  4. 0-04bottom housing

    Nylon

    Softer plastic that rounds off the sound into a deeper, fuller note. Holds the metal contacts and pins; shapes the sound of the bottom-out.

  • 5-pin
  • Factory lubed
  • 80M keystrokes

0-04Ember Linear

Sound & feel

Linear switch with a poppy sound profile.

Sound profile

  1. Muted
  2. Creamy
  3. Thocky
  4. Poppy
  5. Clacky
  6. Clicky

Poppy. A crisp, mid-pitched pop on every press.

Linear switches

Straight down and back up with no bump — the smoothest, most consistent stroke.

Feel
The spring’s force rises evenly from the first millimetre to the bottom. Nothing interrupts the stroke, so every press feels the same.
Sound
Set almost entirely by the plastics: nylon reads deep, polycarbonate bright and poppy, full POM soft and creamy.

Good for

  • Fast games and repeated taps
  • Smooth typing if you bottom out anyway
  • Your first custom build
  • Heavy hands, with a heavier spring

Think twice if: You want to feel the moment a key registers — a linear gives no signal until it bottoms out.

0-05Ember Linear

Keyboards it fits(2)

Any MX-style hot-swap keyboard takes these — no soldering. They do not work in magnetic (HE) keyboards.
Hot-swap
Sockets that let you pull and insert switches without soldering. Strata 75 and Flux TKL have MX-style hot-swap sockets; Halo 65 HE has magnetic (HE) hot-swap sockets — each takes only its own kind of switch.
3-pin vs 5-pin
5-pin switches have two extra thin plastic legs that steady them in boards without a plate. Hot-swap boards with 5-pin holes take both kinds; for a 3-pin-only board, clip the two plastic legs off with flush cutters — never the metal pins.

0-06Ember Linear

Specs(15)

Covered by a 12-month warranty.
Type
Linear
Mount
MX-style, hot-swap
Pins
5-pin (PCB mount)
Actuation force
45 gf
Bottom-out force
55 gf
Pre-travel
2.0 mm
Total travel
4.0 mm
Spring
22 mm single-stage spring
Top housing
PC, clear
Bottom housing
nylon
Stem
POM
Factory lubed
Yes
Long pole
No
Sound
Poppy
Rated lifespan
80M keystrokes

In the box(2)

  1. Switches in a padded tray — quantity as selected
  2. Switch puller with packs of 35 and up

0-07Ember Linear

Questions(8)

Still unsure? Write to [email protected] — we reply within one business day.

They fit any hot-swap keyboard with MX-style sockets, including our Strata 75, Flux TKL and Atelier builds. They have 5 pins, and our boards take them as they are. If your board only takes 3-pin switches, clip the two thin plastic side legs flush with a pair of flush cutters — never the metal pins. They do not work in magnetic (HE) keyboards, and a board without hot-swap sockets needs soldering to change switches.

side by side

Compare with similar(3)

The closest switches in feel that fit the same keyboards, with their force curves on one scale.

all switches

  • Ember Linear

    this switch · 45 gf · poppy · from $6

  • Ghost Linear

    40 gf · clacky · from $5

  • Pearl Linear

    50 gf · creamy · from $7

  • Onyx Linear

    55 gf · thocky · from $6

try before you fill a board

MX Switch Tester

All 13 of our MX switches, one of each. Press them side by side and pick the one to fill your board with.

from$9[ see the tester ]
